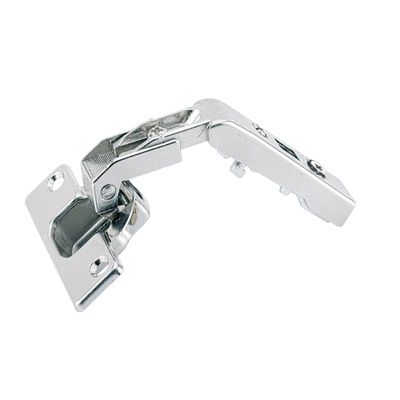

HET INTERMAT 50o/65o HINGE BI-FOLD (CNR CABINET) - SCREW ON
Login For PriceStock Code:
45036
Description
- Intermat hinge for corner cabinet folding doors
- Without self closing feature (Intermat 9930)
- Quality classification under EN 15570, Level 2
- Opening angle 50° / 65°
- For door thickness 15 - 21 mm
- Door mounting option overlay
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for screwing on
- Integrated diagonal adjustment +9.5 mm / -9.5 mm
- Integrated overlay adjustment, see sketch
- Integrated depth adjustment, see sketch
- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
