HET BLIND PANEL HINGE 95o EXPAND SOCKETS
Login For PriceStock Code:
9043672
Description

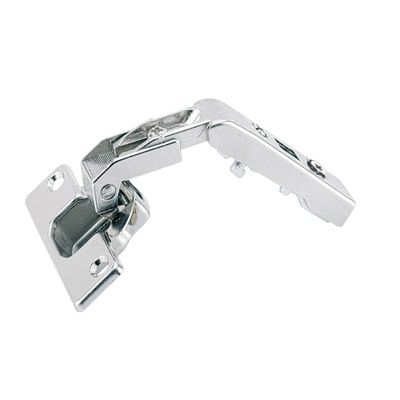

- Intermat angle hinge W90
- With self closing feature (Intermat 9936 W90)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 - 28 mm
- Door mounting option inset (B 5)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation with expanding sockets
- Integrated adjustment of door offset +2 mm / -2 mm
- Integrated reveal adjustment +2 mm / -2 mm

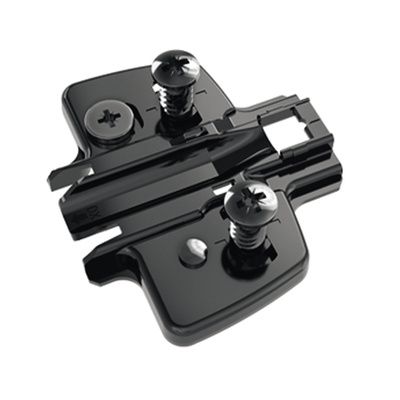

- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
