DOWEL DRILL – WITHOUT HEEL - HW-BC/D6/NL35/S10X30/GL70/LL

Login For Price
Stock Code:
33442
Make an Enquiry

Description

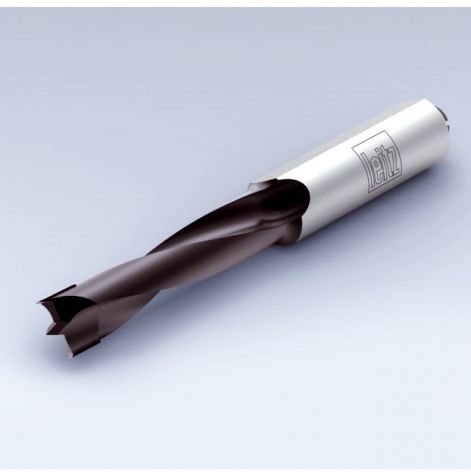

Dowel drill, shank 10 mm, GL 70 mm, Z 2 / V 2



Application:

For drilling blind holes, particularly dowel holes in furniture construction.



Machine:

Point-to-point drilling machines, through feed drilling machines, CNC machining centres, hinge boring machines, multi spindle units.



Workpiece material:

Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.).



Technical information:

Spur geometry with shear cut. Recessed flute for minimised friction and feed force. Drills can be combined with countersink WB 701 0 02. Countersinks can be clamped on the shank.



Id

D

GL

L

NL

S

DR

mm

mm

mm

mm

mm

33476

4

70

68.5

35

10x30

LH

33550

3

70

68.5

25

10x25

LH

33477

4

70

68.5

35

10x30

RH

33551

3

70

68.5

25

10x25

RH

33440

5

70

68.5

35

10x30

LH

42597

3

70

68.5

16

10x45

RH

33441

5

70

68.5

35

10x30

RH

33442

6

70

68.5

35

10x30

LH

33443

6

70

68.5

35

10x30

RH

33444

7

70

68.5

35

10x30

LH

33445

7

70

68.5

35

10x30

RH

33446

8

70

68

35

10x30

LH

33447

8

70

68

35

10x30

RH

33478

9

70

68

35

10x30
