HET QUADRO YOU 30KG 400MM LEFT
Login For PriceStock Code:
9303772
Description

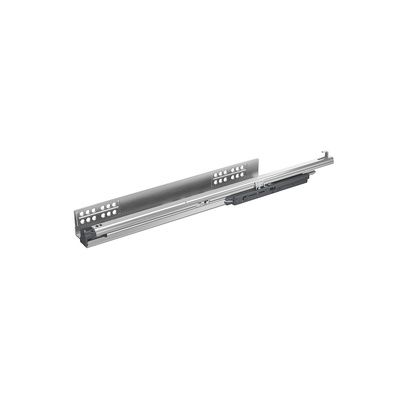

Full extension runner Quadro V6 YOU M (30 kg) with Silent
System, compatible with Push to open Silent, 400 mm, left
- Full
extension runner for combining with AvanTech YOU system drawer or wooden
drawer with catches
- Integrated Silent
System
- Tool-less
height adjustment up to + 3 mm
- Optional:
Push to open Silent opening system
- Optional:
synchronisation / multi synchronisation for Push to open
- Optional:
pull-out shelf support / pull-out shelf locating catch
- Load
classes XS (10 kg) / M (30 kg)
- Platform
concept: identical cabinet body, drawer and front panel dimension for
Quadro partial and full extension runners for slide on installation
- Suitable
for drawers with a side profile thickness of up to 16 mm
- Load
capacity to EN 15338, Level 3
- Galvanised
steel
Advice:
- Catch
for use with wooden drawer can be ordered separately
- Push
to open Silent for Quadro V6 YOU with Silent System can be ordered
separately
- Synchronisation
/ multi synchronisation for Push to open Silent can be ordered separately
- Pull-out
shelf support for use with wooden drawer (pull-out shelf) can be ordered
separately
- Using
the pull-out shelf support reduces drawer length by 10 mm (nominal length
- 20 mm)
