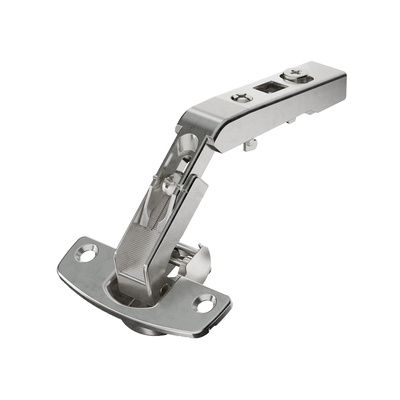

HET 50o/65o HINGE FOLD DOOR (CNR CABINET) - LUGGS
Login For PriceStock Code:
9090110
Description
Hinge for corner cabinet
folding doors without self closing feature (Intermat 9930), nickel plated,
overlay, Opening angle 50° / 65°, TH-drilling pattern 52 x 5.5 mm, for pressing
in (ø 10 x 11)
- Hinge
for corner cabinet folding doors
- Without
self closing feature (Intermat 9930)
- Quality
classification under EN 15570, Level 2
- Opening
angle 50° / 65°
- For
door thickness 15 - 21 mm
- Door
mounting option overlay
- TH
- drilling pattern 52 x 5.5 mm
- Cup
depth 12.8 mm
- Installation
for pressing in
- Integrated
diagonal adjustment +9.5 mm / -9.5 mm
- Integrated
overlay adjustment, see sketch
- Integrated
depth adjustment, see sketch
- Height
adjustment at mounting plate
- steel
/ die-cast zinc nickel plated
