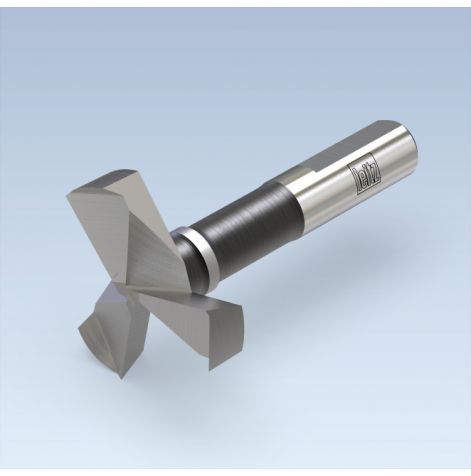

HINGE BORING BIT, SOLID HW, SHORT CENTER - HW/D35/S10X26/GL70/RH

Login For Price
Stock Code:
37281
Make an Enquiry

Description

Hinge drill HW-solid, shank 10 mm, GL 70 mm, short centre point, Z 3 / V 3



Application:

For drilling hinge holes, particularly in furniture construction, with increased lifetime and high-quality edge. Design for higher feed speed in comparison to boring bits with Z 2 / V 2.



Machine:

Point-to-point drilling machines, through feed drilling machines, CNC machining centres, hinge boring machines, multi spindle units.



Workpiece material:

Softwood and hardwood, chipboard and fibre materials (MDF, HDF etc.), uncoated, plastic coated, veneered etc., laminated veneer lumber (plywood, multiplex plywood etc.).



Technical information:

Round spur geometry for increased edge quality. Solid tungsten carbide design. High wear resistant tungsten carbide grade. Tear-free edges in panels with glued plastic edgebanders when used on main spindles or stable drilling units. Design with reduced protrusion of centre point and spurs for deep holes in thin panels.



Id

D

GL

L

S

DRI

mm

mm

mm

mm

37272

25

70

68

10x26

LH

37273

25

70

68

10x26

RH

37280

35

70

68

10x26

LH

37281

35

70

68

10x26

RH





Explanation of Abbreviations

D

Diameter

GL

Total length

L

Length

NL

Cutting length

S

Shank dimension

DRI

Rotation
