HET QUADRO YOU 30KG 550MM PAIR

Login For Price
Stock Code:
9256894
Make an Enquiry

Description

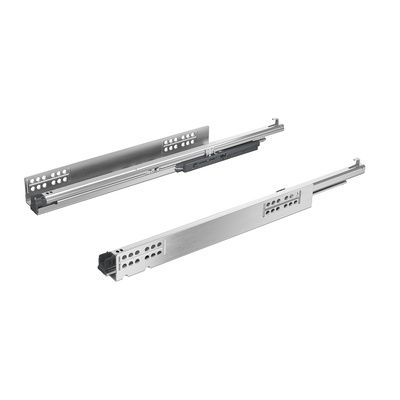

Full extension runner Quadro V6 YOU M (30 kg) with Silent System, compatible with Push to open Silent, 550 mm, left and right

  • Full extension runner for combining with AvanTech YOU system drawer or wooden drawer with catches
  • Integrated Silent System
  • Tool-less height adjustment up to + 3 mm
  • Optional: Push to open Silent opening system
  • Optional: synchronisation / multi synchronisation for Push to open
  • Optional: pull-out shelf support / pull-out shelf locating catch
  • Load classes XS (10 kg) / M (30 kg)
  • Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
  • Suitable for drawers with a side profile thickness of up to 16 mm
  • Load capacity to EN 15338, Level 3
  • Galvanised steel


Set comprises:

  • 1 Quadro V6 YOU drawer runners, left and right


Advice:

  • Catch for use with wooden drawer can be ordered separately
  • Push to open Silent for Quadro V6 YOU with Silent System can be ordered separately
  • Synchronisation / multi synchronisation for Push to open Silent can be ordered separately
  • Pull-out shelf support for use with wooden drawer (pull-out shelf) can be ordered separately
  • Using the pull-out shelf support reduces drawer length by 10 mm (nominal length - 20 mm)
